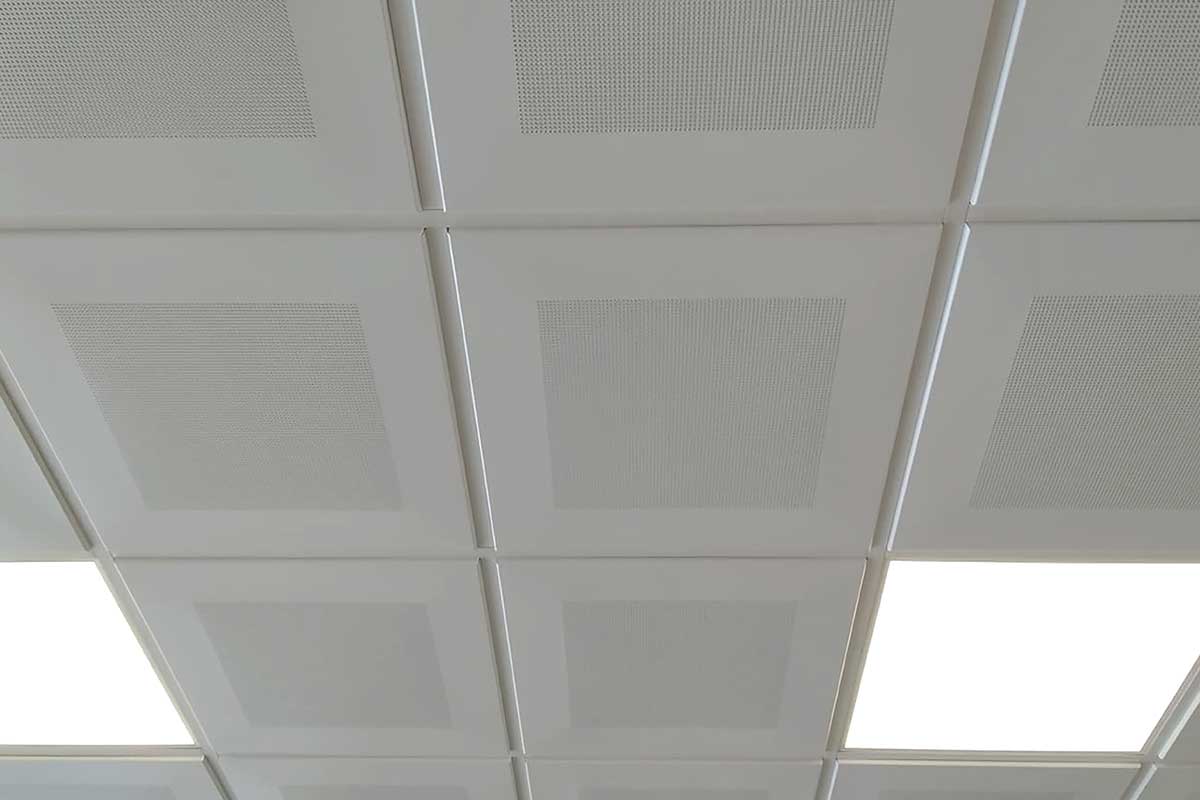

ZtroMetal Exposed Ceiling Suspension System is a robust structural solution designed for lay-in ceiling panels. The system features 24mm or 15mm main channels paired with cross tees, delivering excellent load-bearing capacity, enhanced stability, and versatile design options.
Engineered for efficiency, the ZtroMetal system simplifies installation, reducing time and labor costs.
Ceiling tiles used with the system are manufactured from high-quality steel or aluminum and are available in plain or perforated styles. Tiles can be finished with paint, pre-coating, or powder coating. Perforated options come in straight or diagonal patterns with a variety of design choices to suit aesthetic and acoustic requirements.
Address : New Industrial Area
UMM AL QUAIN, U.A.E
Call Us : +971(0)688 68 082
Mail Us : info@ztrometal.com
Office Time : Monday to
Friday 10:00 - 20:00
EXPOSED / LAY-IN CEILING SYSTEM
Operation & Control
APPLICATIONS, FEATURES & BENEFITS
| APPLICATIONS | FEATURES & BENEFITS |
|---|---|
| Offices | Choice of tile edge detail |
| Classrooms | Standard sizes ex-stock |
| Laboratories | Ceiling takes up minimal void space |
| Hospitals | Simple downward access |
| Airports & Other Commercial | Services easily integrated |
| Installations | Excellent fire performance |
PLAIN, PERFORATED, AND OTHERS ARE AVAILABLE
| Reference/ID | Dimensions (mm) | Thickness (mm) | Color |
|---|---|---|---|
| Z-243060 Z-253060 |
300 x 600 | 0.6/0.7/0.8 | RAL-9003/RAL-9010 |
| Z-2430120 Z-2530120 |
300 x 1200 | 0.6/0.7/0.8 | RAL-9003/RAL-9010 |
| Z-246060 Z-256060 |
600 x 600 | 0.6/0.7/0.8 | RAL-9003/RAL-9010 |
| Z-2460120 Z-2560120 |
600 x 1200 | 0.6/0.7/0.8 | RAL-9003/RAL-9010 |
| Finish Coating / Material Standard The coating on the tiles conform to ECCA standards and performed as per European norms: EN 1396 specifications. Aluminum alloy / temper:3005 / 3105 – H24, as per ASTM B 209 M. Fire Classification Class 1 Surface spread of flame as per BS 476: Part 7: 1997 Class A Surface spread of flame as per ASTM E84-16 Note: Lay-In Tile on T15 and T24 available. |
Raw Material Aluminum Alloy as per ASTM B – 209M / Zinc plated. Galvanized Steel as per ASTM A653M Stainless Steel ( Brush / Mirror ) |
LAY-IN-SUSPENSION SYSTEM COMPONENTS

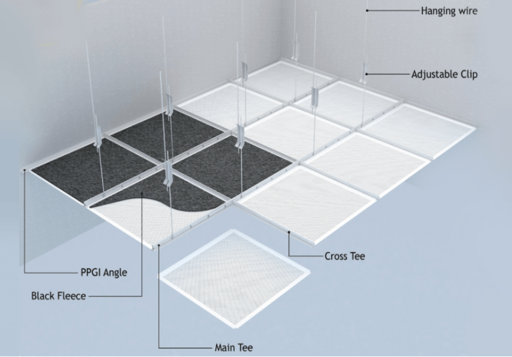

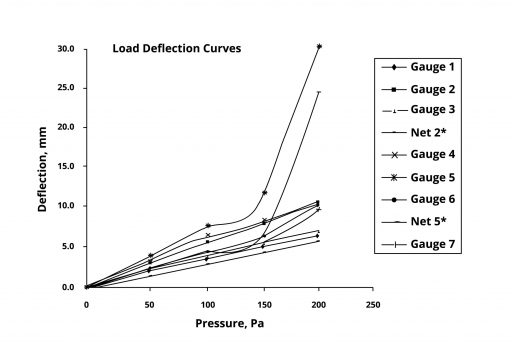

The Suspension T-Grid with a capping face used for 600mm x 600mm aluminium, steel, vinyl or mineral fibre tiles.
| Description | Reference/ID | Dimensions (mm) | Thickness | Length (mm) | Color |
|---|---|---|---|---|---|

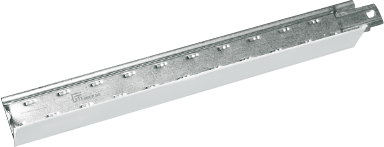

| Cross Tee | ZCT60 ZCT120 ZCT1560 ZCT15120 |
25 x 24 (T-24) 25 x 24 (T-24) 32 x 15 (T-15) 32 x 15 (T-15) |
600 1200 600 1200 |
RAL-9003/RAL-9010 RAL-9003/RAL-9010 RAL-9003/RAL-9010 RAL-9003/RAL-9010 |
|

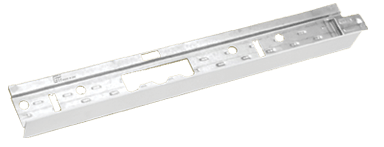

| Main Tee | ZMT360 ZMT360 ZPGA15 |
32 x 15/24 38 x 24 19 x 15 (T-15) |
- - 0.45 |
3600 3600 - |
RAL-9003/RAL-9010 RAL-9003/RAL-9010 - |

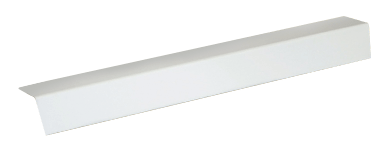

| L-Angle | ZPGA20 ZPGA25 |
20 x 20 25 x 25 |
0.45 0.45 |
3000 3000 |
RAL-9003/RAL-9010 RAL-9003/RAL-9010 |
| L-Angle with Tab | ZTA25 | 25 x 25 | 0.45 | 3000 | |

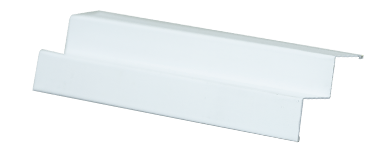

| W-Angle | ZWA10 ZWA15 ZWA20 |
A - B - C - D 19 - 9 - 19 19 - 15 - 15 - 19 20 - 19 - 19 - 20 |
0.45 0.45 0.45 |
3000 3000 3000 |
RAL-9003/RAL-9010 RAL-9003/RAL-9010 |
| W-Angle with Tab | ZWA10T ZWA15T ZWA20T |
A - B - C - D 19 - 9 - 19 19 - 15 - 15 - 19 20 - 19 - 19 - 20 |
0.45 0.45 0.45 |
3000 3000 3000 |
RAL-9003/RAL-9010 RAL-9003/RAL-9010 |
ACCESSORIES
INSTALLATION
STEP 1
Mark the wall
Using the water level or laser method, mark the desired height on the wall.
STEP 2
Attach Edge Trim / U-shape or W-shape
Using screws and nails, fix the Edge Trim on the walls at the marked height.
STEP 3
Complete the grid
Mark the required distance intervals proceed to fix the suspension system using the Main and Cross Tee according the approved layout.
STEP 4
Mark the wall
Fix the suspension system with 3mm or 4mm wires using ceiling clips and cartridges.
STEP 5
Install the Tiles
Lay in the 595mm x 595mm tiles in the correct pattern.
STEP 6
Cut the tiles (if necessary)
Cut apertures for lights and other services where required.
