CONCEALED / CLIP-IN CEILING SYSTEM

CONCEALED / CLIP-IN CEILING SYSTEM



The Concealed Clip-in Ceiling System is one of the most widely used metal tile ceiling solutions, typically suspended from the soffit. Designed with a clean, seamless appearance, the system conceals the grid entirely and allows for easy integration of lighting, ventilation, and smoke detection units. It also supports a range of acoustic performance requirements.


Ceiling tiles are securely clipped into a concealed spring tee, automatically leveling themselves within the grid. The robust grid structure is simple to install, while individual tiles can be easily removed and replaced, ensuring convenient access to hidden services.


Our system offers a cost-effective solution to a wide range of ceiling needs. A comprehensive selection of standard tile sizes and perforation patterns is readily available from stock, along with all required grid components.

Operation & Control
Enquire Now

APPLICATIONS

APPLICATIONS FEATURES & BENEFITS
Offices Choice of tile edge detail
Classrooms Standard sizes ex-stock
Laboratories Ceiling takes up minimal void space
Hospitals Simple downward access
Airports & Other Commercial Services easily integrated
Installations Excellent fire performance

APPLICATIONS, FEATURES & BENEFITS

  • Finish Coating / Material Standard
    The coating on the tiles conform to ECCA standards and performed as per European norms: EN 1396 specifications. Aluminum alloy / temper:3005 / 3105 – H24, as per ASTM B 209 M.

  • Fire Classification
    Class 1 Surface spread of flame as per BS 476: Part 7: 1997
    Class A Surface spread of flame as per ASTM E84-16

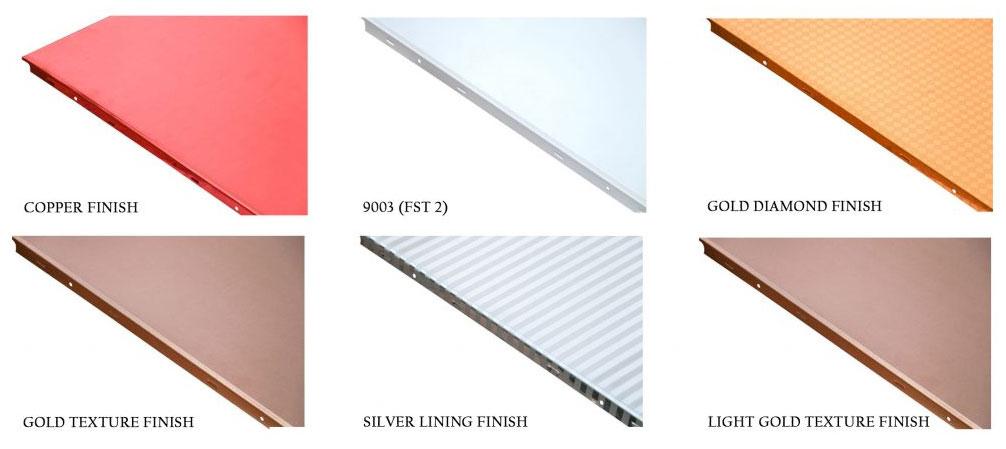

Finish Raw Material

Surface Finish- Plain / Perforated / Decorative Face Patterns

Awesome Image
Awesome Image

Raw Material

Aluminum Alloy as per ASTM B – 209 / Zinc plated. Galvanized Steel as per ASTM A653. Stainless Steel ( Brush / Mirror ).

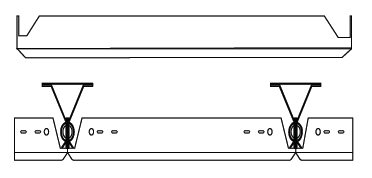

CONCEALED/CLIP-IN CEILING SYSTEM COMPONENTS

Material : Galvanized Iron as per ASTM A653M/ Aluminum as per ASTM B209M Indirect Hung as per ASTM C635M/ASTM C636M


Description Reference/ID Dimensions (mm) Thickness (mm) Color
Plain/Perforated Aluminum ZT B4 300 X 600
600 X 600
600 x 1200
0.6/0.7/0.8 RAL-9003/RAL-9010

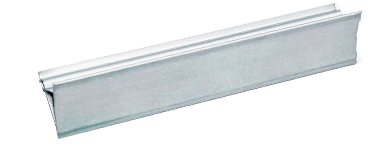

Spring Tee ZST 3000
4000
0.45/0.5 Galvanized Iron

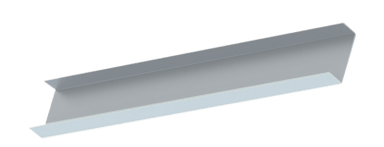

Aluminum Edge Trim ZET38 3000
4000
(Custom length available)
0.6/0.7 RAL-9003/RAL-9010

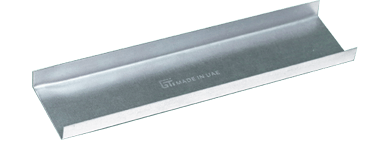

Main Channel GI 38 ZMC38 3000
4000
(Custom length available)
0.45 - 1.5 Galvanized Iron

ACCESSORIES

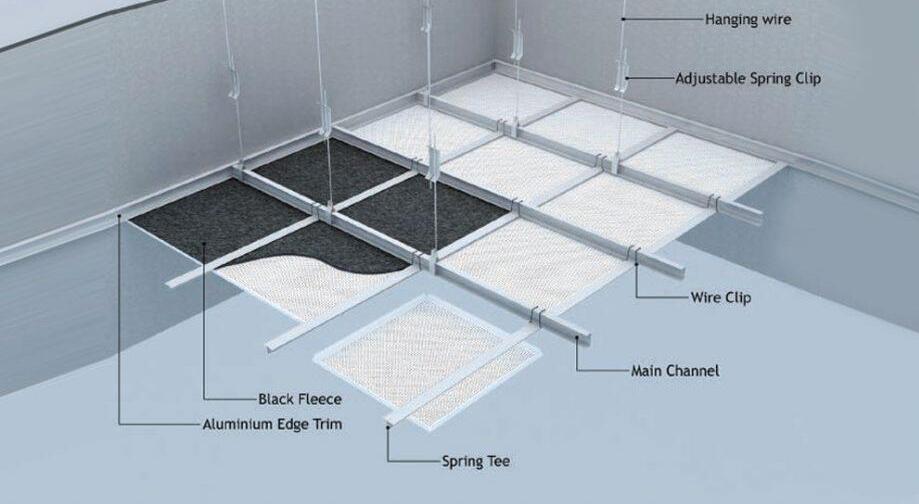

INSTALLATION


STEP 1

Mark the wall

Using the water level or laser method, mark the desired height on the wall.

STEP 2

Attach Edge Trim / U-shape or W-shape

Using screws and nails, fix the Edge Trim on the walls at the marked height.

STEP 3

Complete the grid

Mark the required distance intervals then proceed to fix the suspension system using the main channel maximum spaced @ 1200mm O.C and spring Tee spaced @ 600mm O.C, connected with wire clips or screwed.

STEP 4

Attach the hanging support

Fixing Hanging wires 3mm/4mm with adjustable clip and channel bracket or channel support from soffit of slab with Ceiling Clip and Cartridge or wedge anchor, connected directly to the main channel.

STEP 5

Install the Tiles

Clip-in the 600mm x 600mm tiles in the correct pattern.

STEP 6

Cut the tiles (if necessary)

Cut apertures for lights and other services where required.
