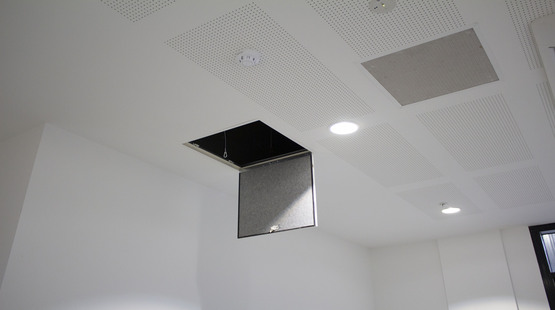

ZtroMetal Standard Access Panel is a lightweight, non-fire-rated solution designed for use in both ceilings and walls, providing quick and convenient access to concealed services. Once installed, it requires minimal maintenance, making it ideal for a variety of residential and commercial applications. The panel features a durable, powder-coated aluminum frame with a door faced in Gyproc Moisture Resistant gypsum board, ensuring reliability in humid environments. For added safety and ease of use, each panel is equipped with a push-catch lock mechanism, as well as a built-in safety cable and hook.
Address : New Industrial Area
UMM AL QUAIN, U.A.E
Call Us : +971(0)688 68 082
Mail Us : info@ztrometal.com
Office Time : Monday to
Friday 10:00 - 20:00
Access Panel
Operation & Control
PHYSICAL PROPERTIES
| ALLOY | TEMPER | HARDNESS | ELONGATION (%) | UTS (MPS) |
|---|---|---|---|---|
| AA6063 | T6 | 75BHN | 06MIN | 215 |
APPLICATION & INSTALLATION
- Suitable for Non – Fire Rated ceiling system, where no structural performance are required.
- Cut aperture within the plasterboard ceiling and install the frame in the ceiling.
- Ensure frame is set into ceiling aperture.
- Additional framing support to the ceiling frame work around the aperture for more secure.

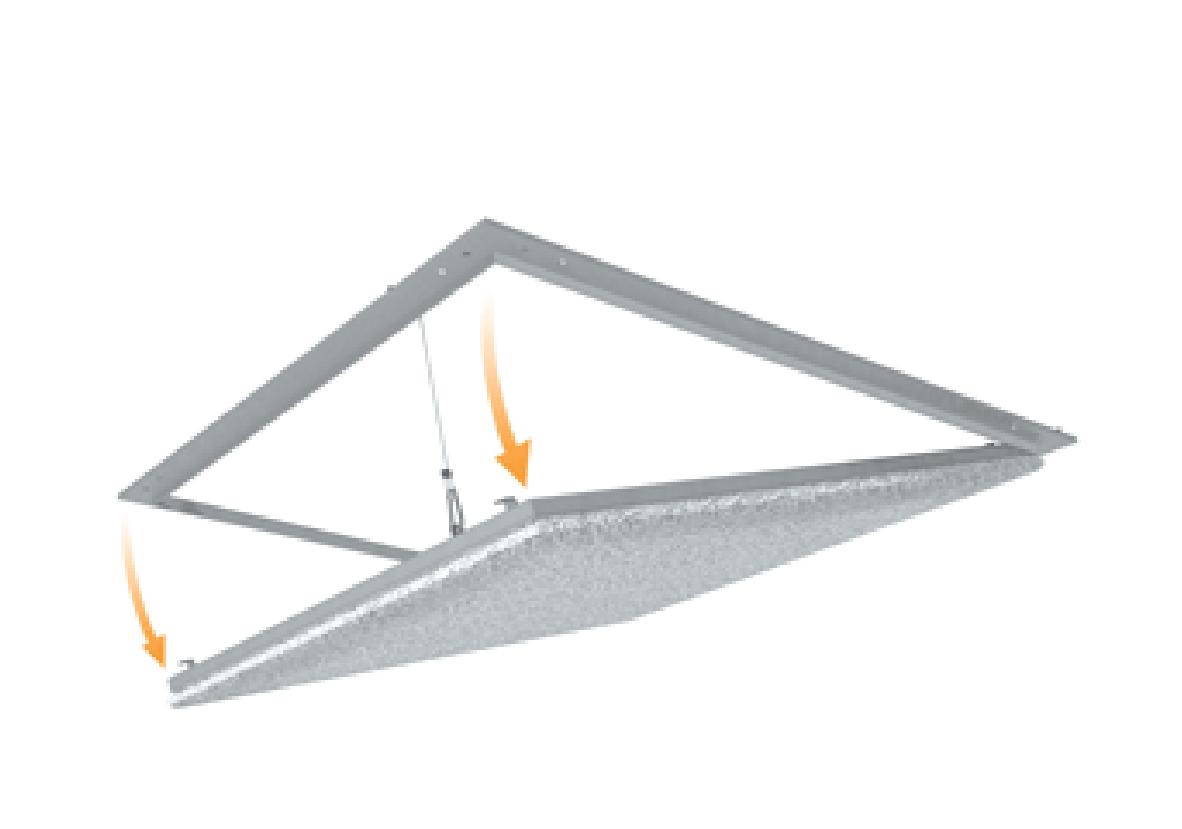

- Refit door into frame and check operation prior to finishing.

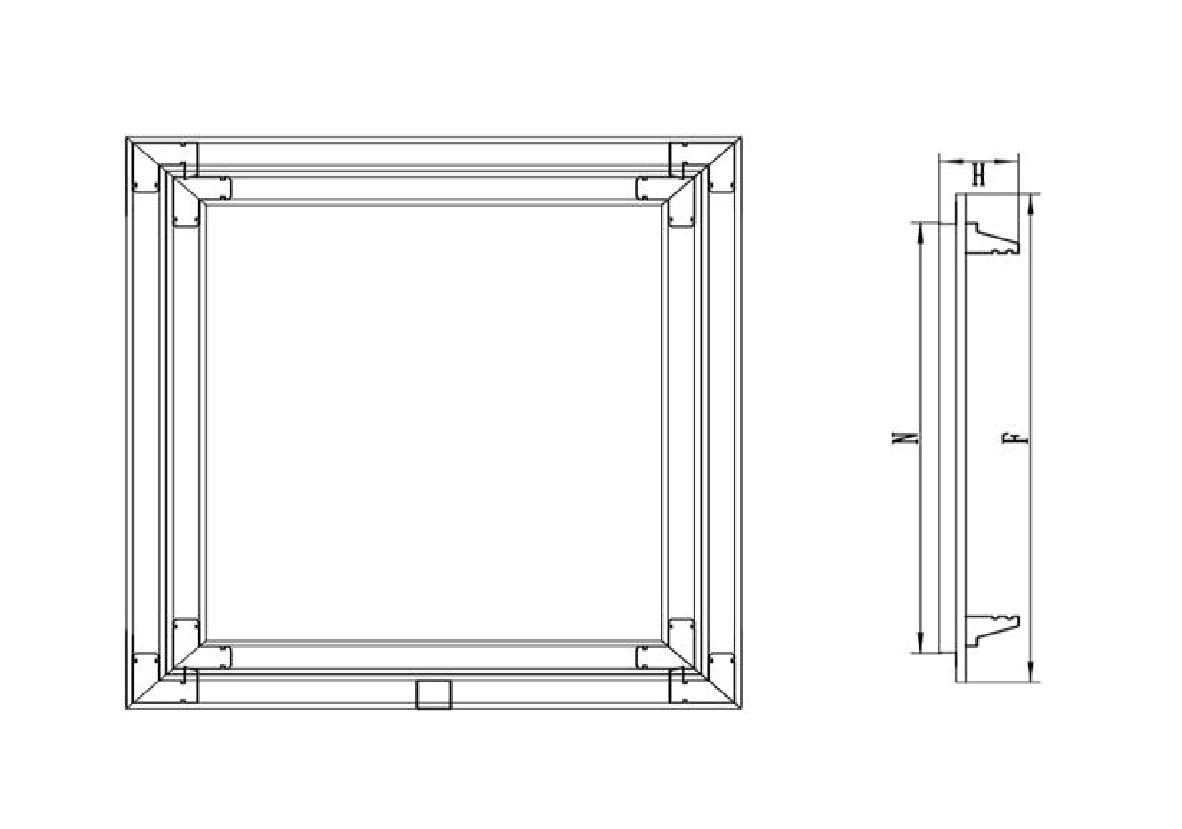

STANDARD ACCESS PANEL RANGE
| Dimension (A-B) (mm) |
|---|
| 200 - 200 |
| 300 - 300 |
| 400 - 400 |
| 450 - 450 |
| 500 - 500 |
| 600 - 600 |
| 900 - 600 |
We also produce custom-made access panels with different sizes & types according to the client’s requirements.
Comply to British Standards.
– BS EN 573 – 3 – 2013 Part 3
– BS EN 755 – 2 – 2013 Part 2
SPECIFICATION
Non-Fire Rated standard aluminum access panel frames are electrostatic powder coated white. Aluminium grade (6063-T6), coating 60 microns (white color), thickness 2.00mm.
